RPI Automated Tracking System
Complete Turn-Key Flight Tracking & Streaming Solution
The ultimate "set it and forget it" aviation tracking solution. Automatically starts tracking on vehicle power-up or movement detection, streams live video and audio, and gracefully ends tracking upon arrival.
Complete with integrated GPS, 4G internet connectivity, aviation audio interface, dedicated camera, and remote management capabilities. No pilot intervention required - ever.
đ¯ Why Choose the Automated System?
| Feature | Manual Systems | RPI Automated System |
|---|---|---|
| Setup Required | â Press record, setup streaming each flight | â Zero - automatic on power-up |
| Internet Connection | â Requires mobile hotspot setup | â Built-in 4G connectivity |
| GPS Tracking | â Separate device/app required | â Integrated high-precision GNSS |
| Configuration Changes | â Manual access to device required | â Remote management panel |
| Pilot Workload | â Remember to start/stop each flight | â Zero pilot workload |
| Power Reliability | â Dependent on stable aircraft power | â Power autonomy - continues operating even if supply power fails |
đ How It Works - Completely Automated
Auto Power-On
System automatically activates when aircraft power is applied or movement is detected
GPS Lock & 4G Connect
Integrated GNSS acquires position and 4G modem establishes internet connection
Auto-Start Tracking
Flight tracking begins automatically - no pilot action required
Live Streaming
Video and aviation audio stream live to Gyropilots/GApilots platform
Intelligent Shutdown
Automatically detects arrival and gracefully ends tracking and streaming
đ§ Automated System Overview
Complete Automated Tracking & Streaming System
Complete automated system overview showing direct 4G connectivity and zero-setup operation
Click diagram to view in full size
Full Automation
- Automatic start on power-up or movement detection
- Intelligent flight detection algorithms
- Auto-stop on arrival with configurable timeout
- Zero pilot workload during operations
- Smart power management with graceful shutdown
- Automatic recovery from power interruptions
Integrated Connectivity
- Built-in 4G GNSS dongle for internet and positioning
- High-precision GPS/GLONASS/Galileo support
- Automatic cellular network selection
- Real-time data streaming capabilities
- Offline mode with automatic sync when connected
- Global roaming support for international flights
Complete A/V Solution
- Dedicated aviation-grade camera included
- Direct connection to aircraft radio system
- Crystal-clear aviation audio capture
- Real-time video streaming with adaptive bitrate
- Local recording backup for all flights
- Professional cockpit mounting hardware
Remote Management
- Web-based management panel
- Remote configuration of video/audio settings
- Real-time system status monitoring
- Automatic configuration download on boot
- Flight history and analytics dashboard
- Remote troubleshooting and diagnostics
Platform Integration
- Seamless Gyropilots.org/GApilots.org integration
- Live flight following for friends & family
- Real-time flight data sharing
- Professional flight replay interface
- Social sharing and flight logging
Turn-Key Installation
- Complete installation kit included
- Pre-configured for immediate use
- Professional installation service available
- Comprehensive setup documentation
- Ongoing technical support included
- Regular software updates via remote management
đ§ Technical Specifications
Hardware Platform Options
đˇ Hardware Gallery

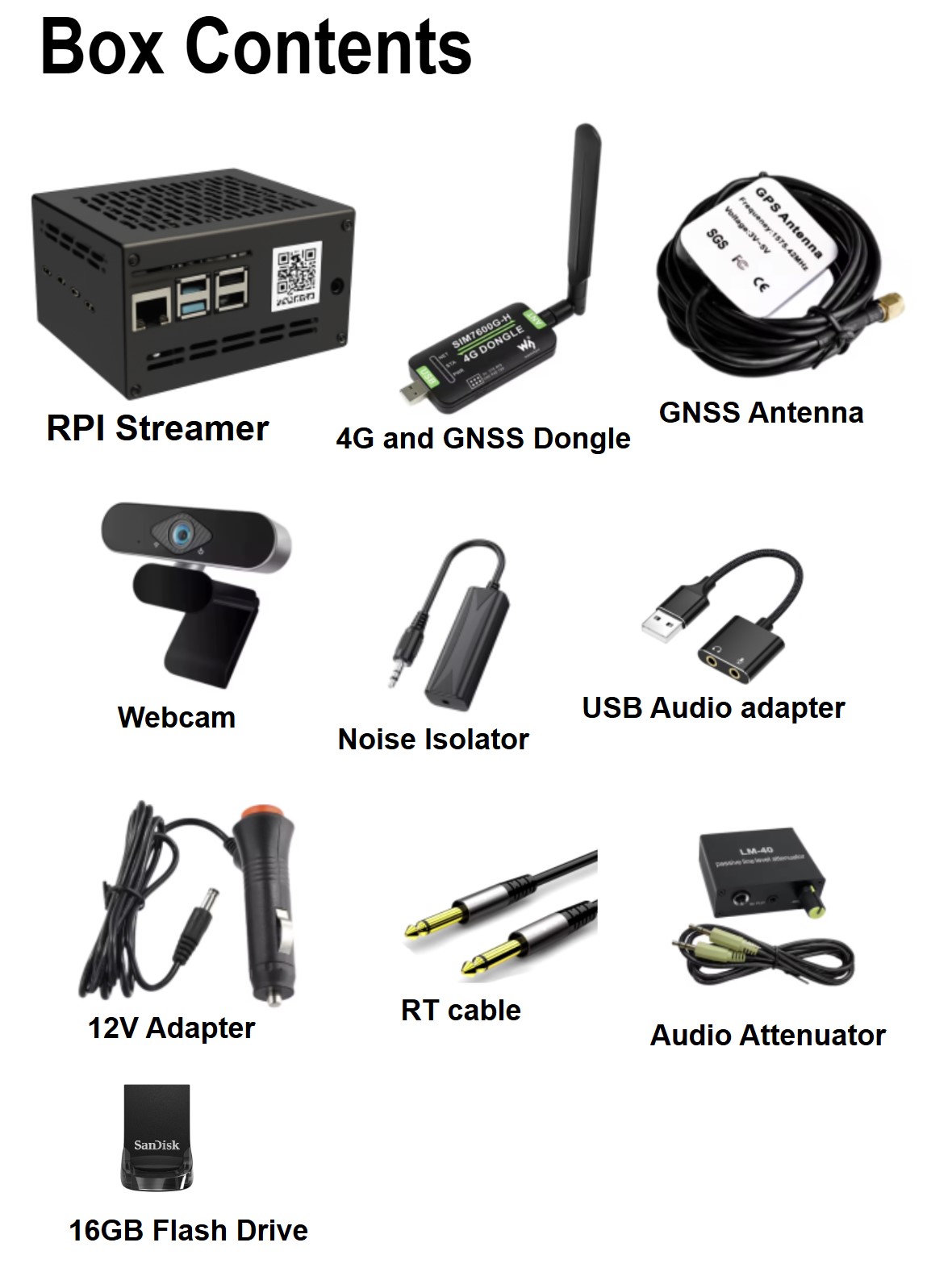

Complete Kit Contents
Voyager Device
Endurance Device
Click any image to view in full size
| Component | Voyager (RPI-S205) | Endurance (RPI-S206) |
|---|---|---|
| Base Platform | RPI-S205 UPS System | RPI-S206 UPS System |
| Compatible Raspberry Pi | Raspberry Pi 4B / 5 | Raspberry Pi 4B / 5 |
| Battery Configuration | 2-Cell 21700 Lithium | 4-Cell 21700 Lithium (up to 20,000mAh) |
| Flight Duration | 2-4 hours typical | 6-12+ hours capacity |
| Power Input Options | âĸ 5Vdc 5A via USB Type-C âĸ 9-18Vdc âĨ3A via DC 5521 âĸ 9-18Vdc âĨ3A via XH2.54 |
âĸ 5Vdc 5A via USB Type-C âĸ 9-18Vdc âĨ3A via DC 5521 âĸ 9-18Vdc âĨ3A via XH2.54 |
| Key Features | âĸ Compact design âĸ Stable power supply âĸ Aviation-grade reliability |
âĸ Ultra-high capacity âĸ Extended power autonomy âĸ External USB ports for stable peripheral power |
| Best Use Cases |
âĸ Training flights âĸ Local touring âĸ Small aircraft âĸ Portable installations |
âĸ Extended missions âĸ Cross-country flights âĸ Commercial operations âĸ additional peripherals |
| 4G GNSS Module | Integrated high-precision dongle (GPS + Internet connectivity) | |
| Aviation Camera | Dedicated cockpit camera with complete mounting kit | |
| Audio Interface | Direct aircraft radio connection for professional aviation audio capture | |
đ RPI Streamer Variants - Choose Your Configuration
Two automated tracking configurations available. Choose the system that best matches your flight duration requirements and power needs. Both systems provide power autonomy - they can be configured to stay alive even if supply power ceases or fails.
đĄ Choosing Your Automated Tracker
đ RPI Streamer Voyager:
- Training Operations: Perfect for flight schools
- Local Flights: 2-4 hour flight duration
- Compact Size: Fits in small aircraft panels
- Cost Effective: Essential automation features
đŠī¸ RPI Streamer Endurance:
- Extended Power Autonomy: Superior backup capability
- External USB Power: Stable power for additional peripherals
- Long-Duration Flights: 6-12+ hour operations
- Mission-Critical Reliability: Commercial-grade uptime assurance
đĻ Complete Kit Includes
đĨī¸ Core Hardware
- RPI Streamer device with integrated UPS
- 4G GNSS dongle (GPS + Internet)
- Dedicated aviation camera
- Professional mounting hardware
đ Connectivity Kit
- Aircraft radio interface cables
- Power connection harness
- Camera mounting bracket
- All necessary adapters and connectors
đģ Software & Services
- Pre-configured system software
- Remote management dashboard access
- Gyropilots/GApilots platform integration
- 12 months technical support
đŦ See It In Action
Experience the complete automated flight tracking interface:
See real flight data with synchronized video and tracking - exactly what your followers will experience
Ready for Zero-Workload Flight Tracking?
Transform your aircraft into a fully automated streaming and tracking platform. No more forgetting to press record, no more manual setup - just professional flight tracking that works every time.
Professional installation and training services available worldwide.
Contact us today to revolutionize your flight tracking experience.
